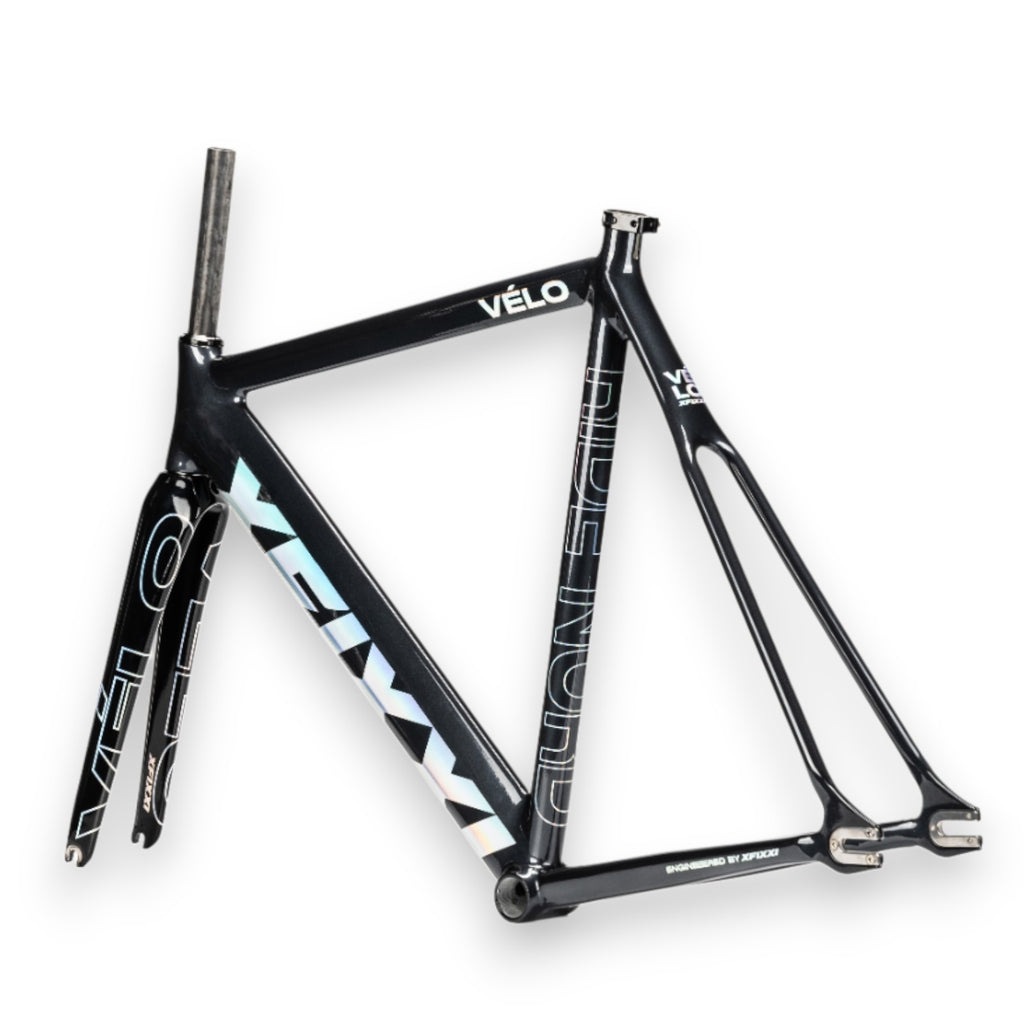

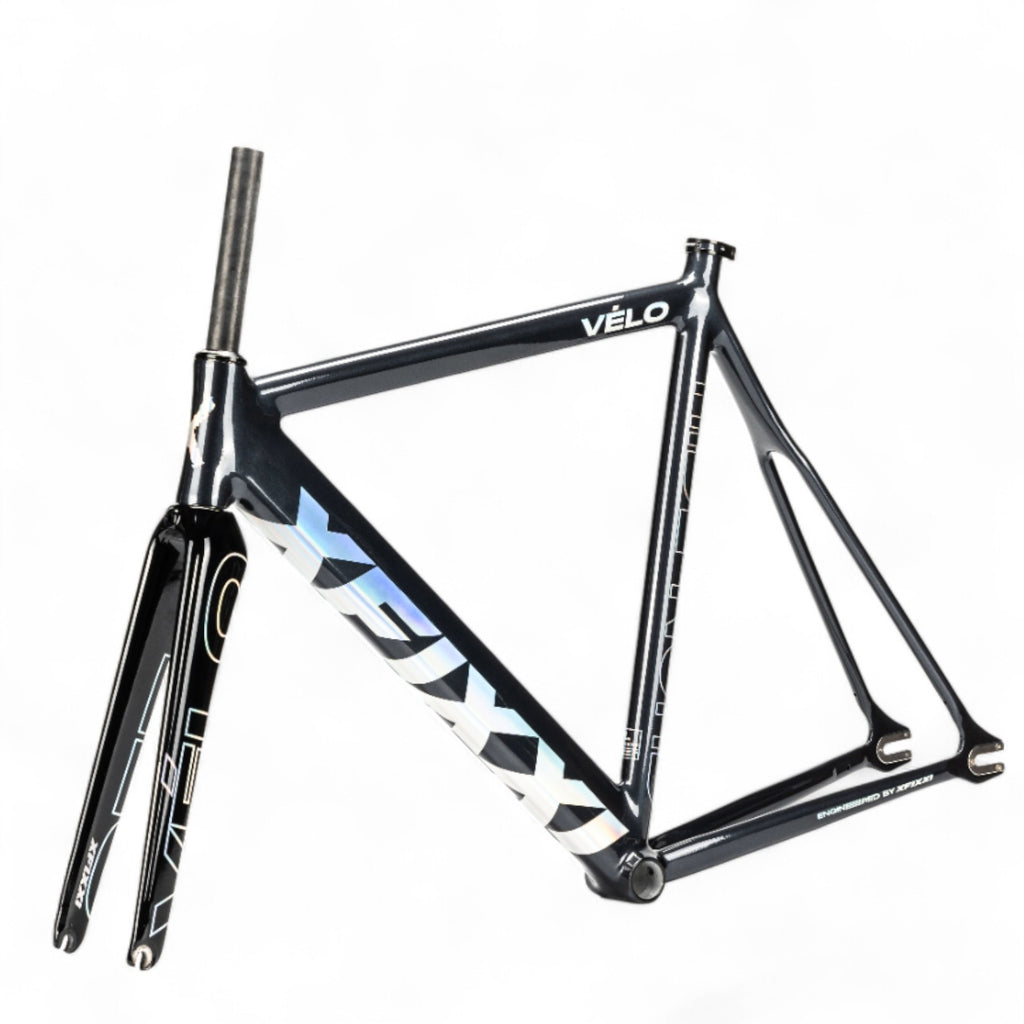

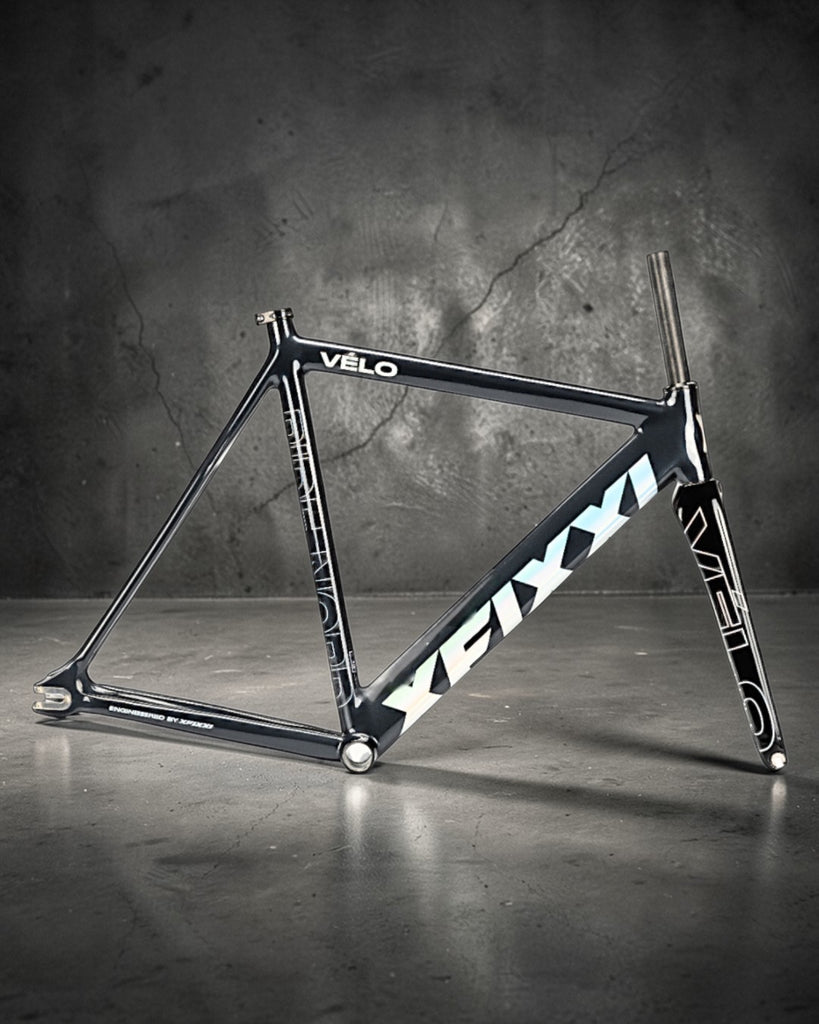

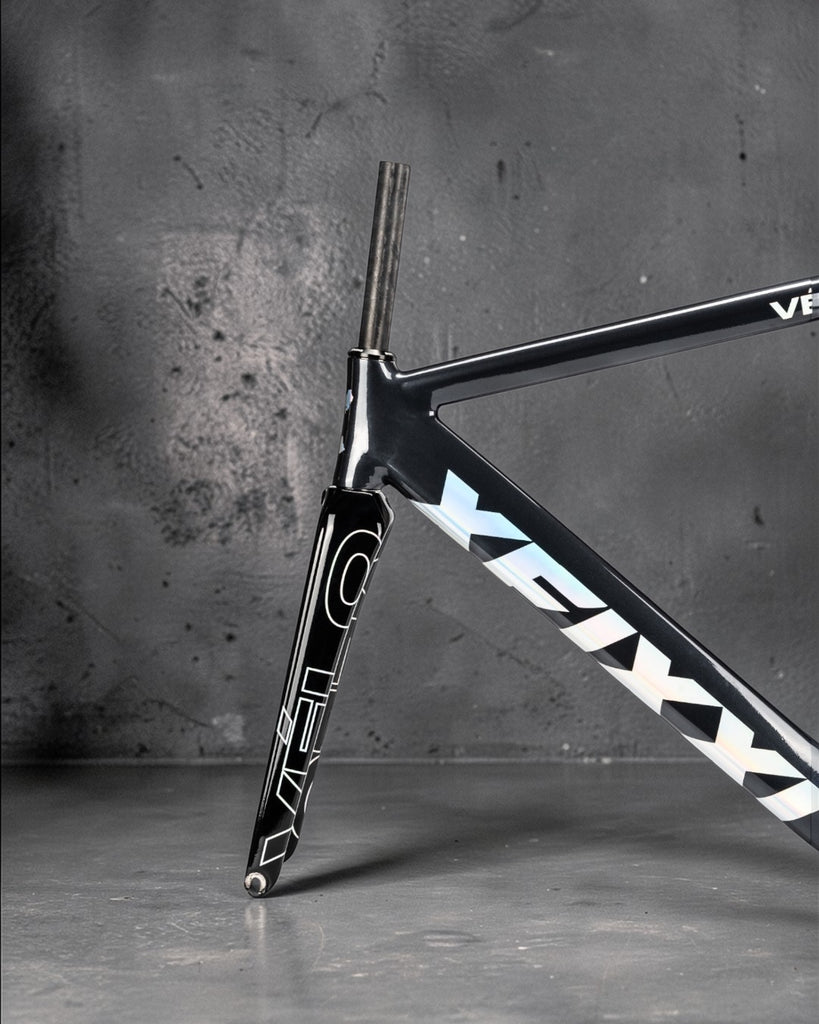

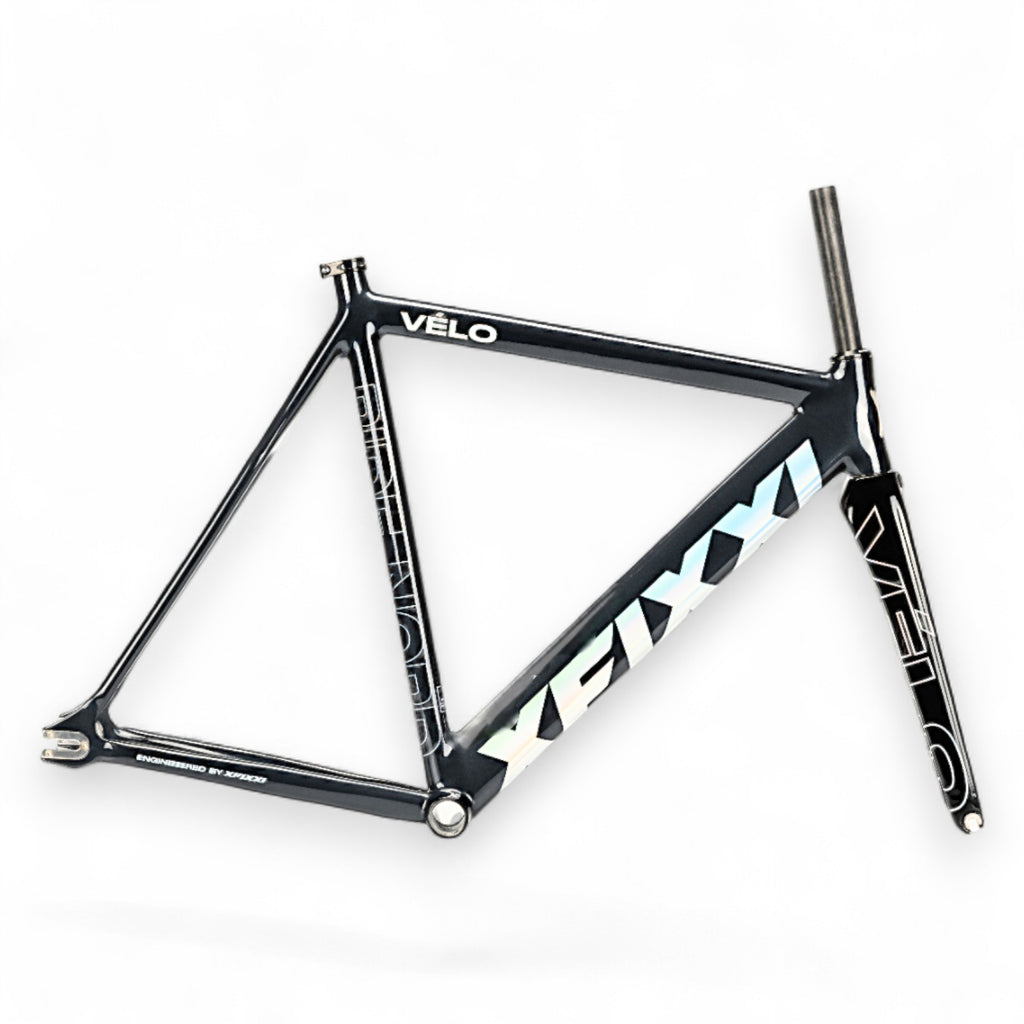

XFIXXI VÉLO Low Pro Track Aluminum Frameset | 6069 Alloy · T800 Carbon Fork
The XFIXXI VÉLO Low Pro Aluminum Track Frameset is engineered for riders who demand uncompromising stiffness, precise handling, and authentic velodrome DNA. Built around pursuit-inspired race geometry, this frameset delivers aggressive positioning and direct power transfer for serious track and high-performance fixed gear builds.
Constructed from high-strength 6069 aluminum, the oversized oval down tube maximizes frame rigidity and enhances sprint efficiency. Whether launching from a standing start or maintaining high cadence, power delivery feels immediate and controlled.

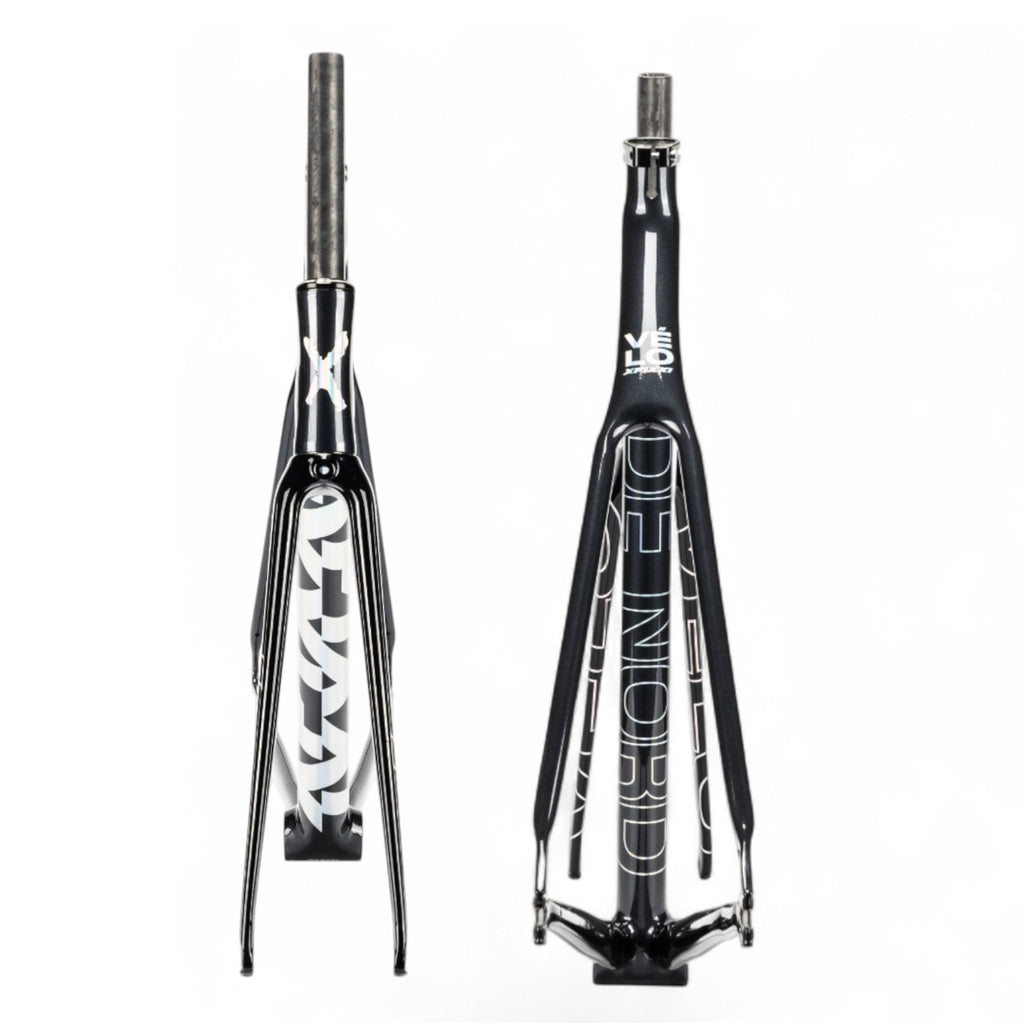

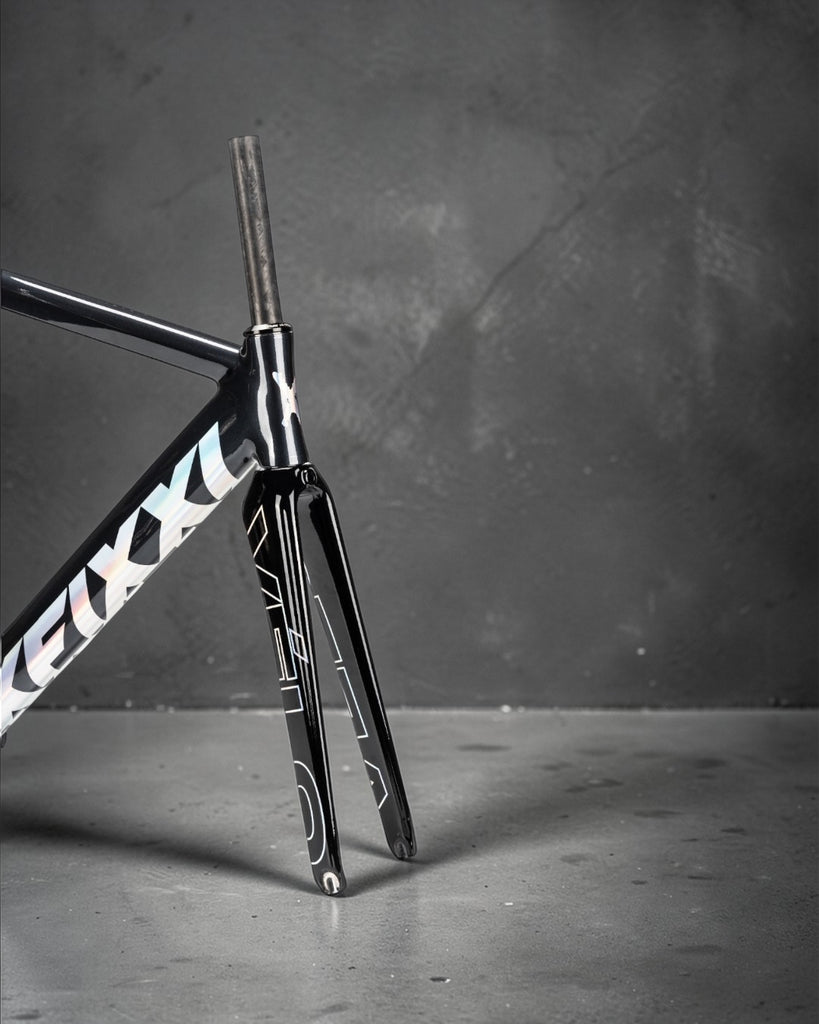

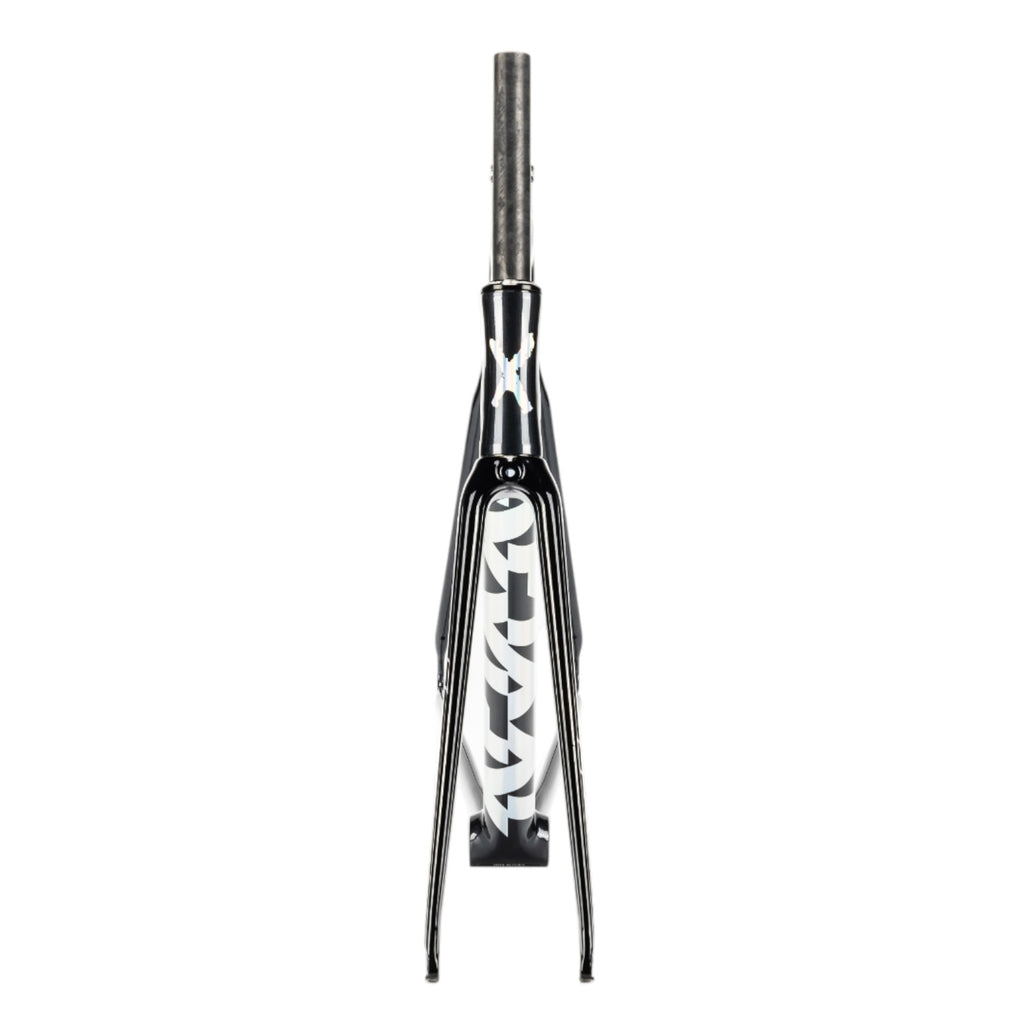

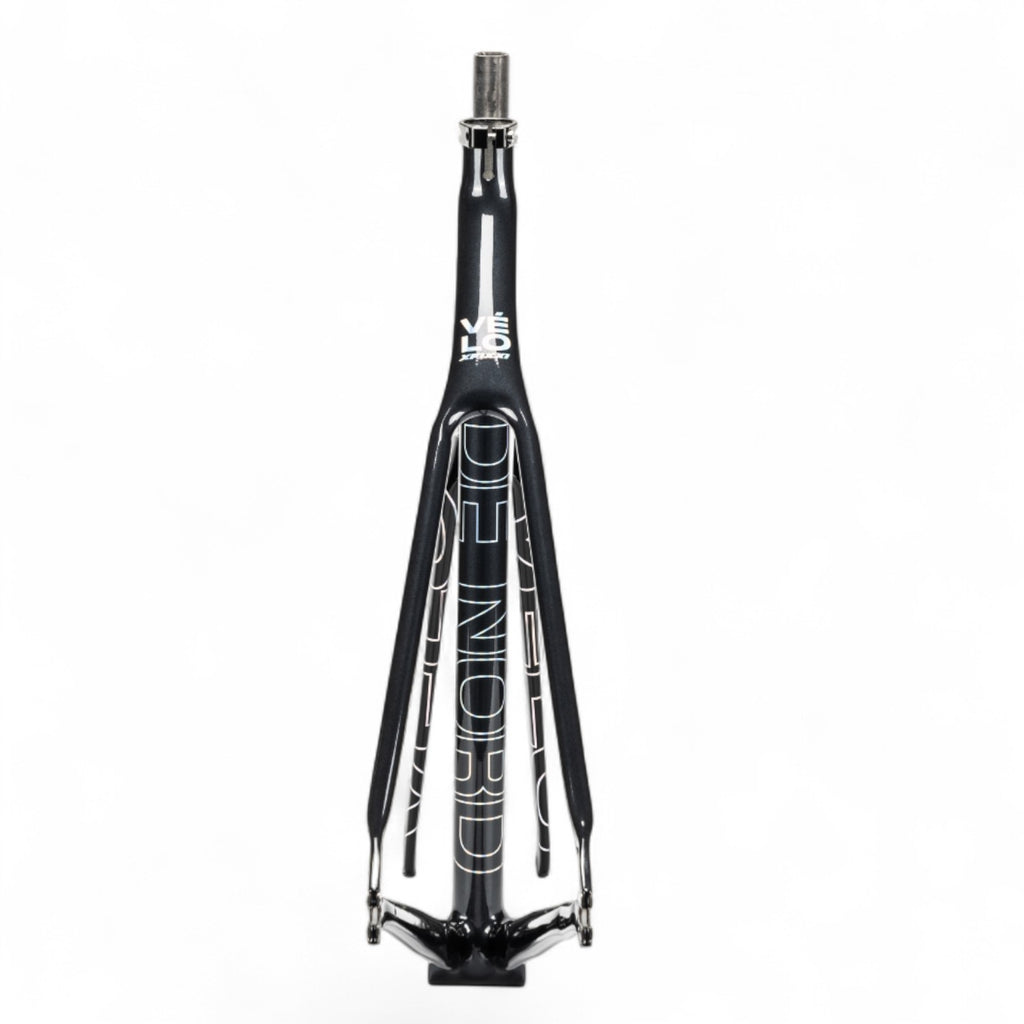

A full T800 carbon fork sharpens front-end response while reducing weight, improving steering precision at speed. Smooth welds and a minimalist race silhouette complete a clean, modern aesthetic built for pure performance.
This frame follows true track specification and is not equipped with a rear brake mount.
Why Low Pro Geometry?
Low Pro geometry takes inspiration from pursuit-style track bikes, which are known for their long, low, and aggressive riding position. This frame style is designed to reduce frontal profile, support efficient power transfer, and deliver a responsive, race-focused feel on the track.
Frames with this design typically emphasize:
- Aggressive aerodynamic riding position
- Steep, efficient race posture

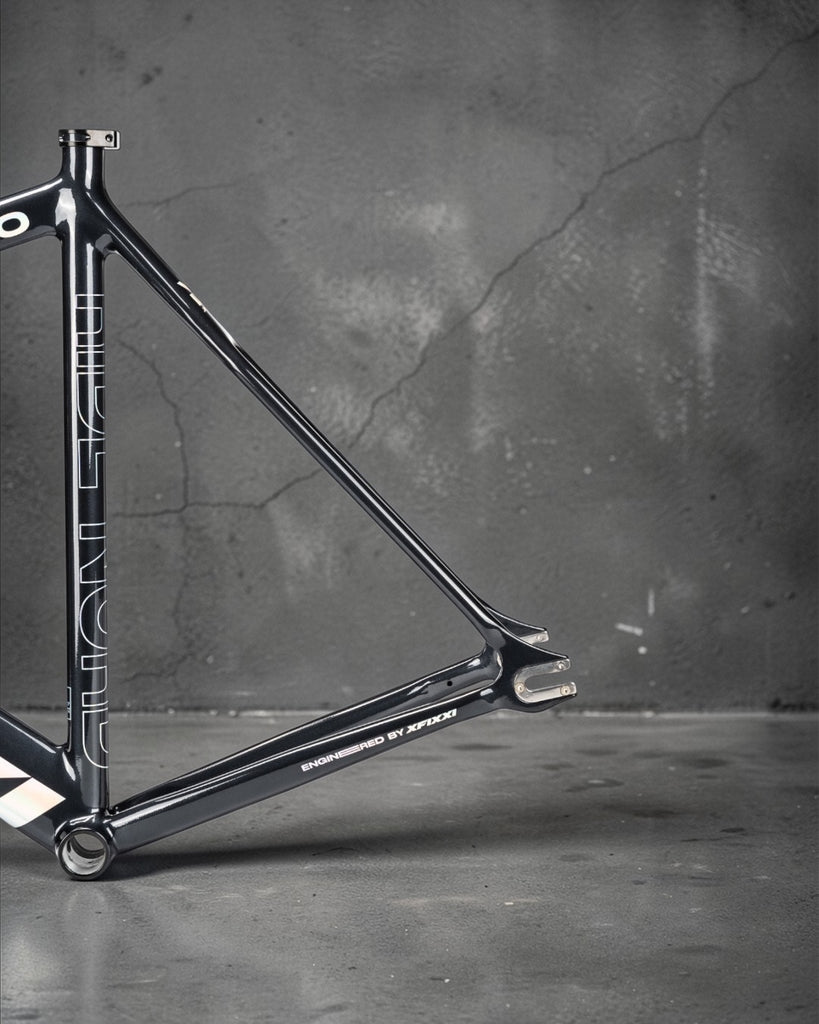

- Responsive handling from a compact rear end
- Stability when riding at sustained high speeds
Designed for riders who want track-inspired geometry with a sharp, performance-driven character.
Key Features
- Frame Material: 6069 Aluminum
- Fork: T800 Full Carbon Fork

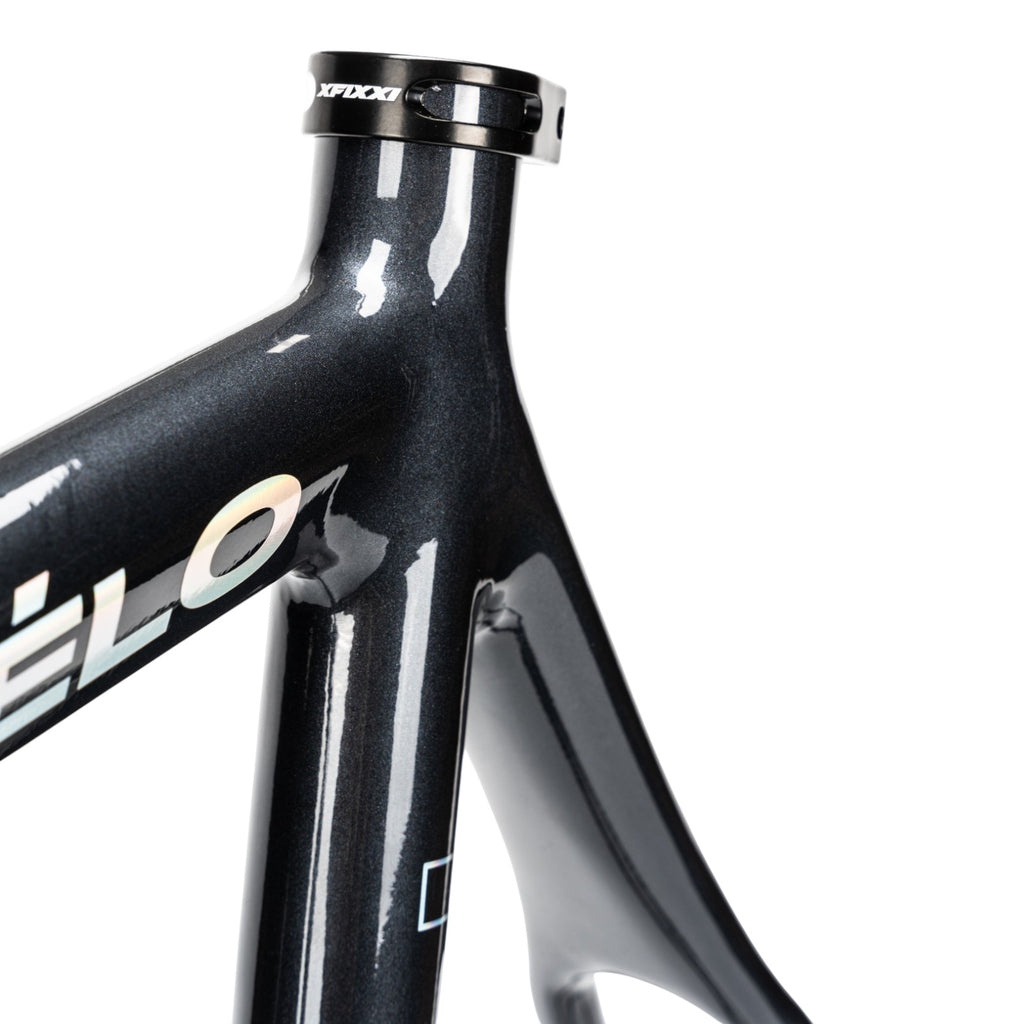

- Construction: Smooth-weld finish

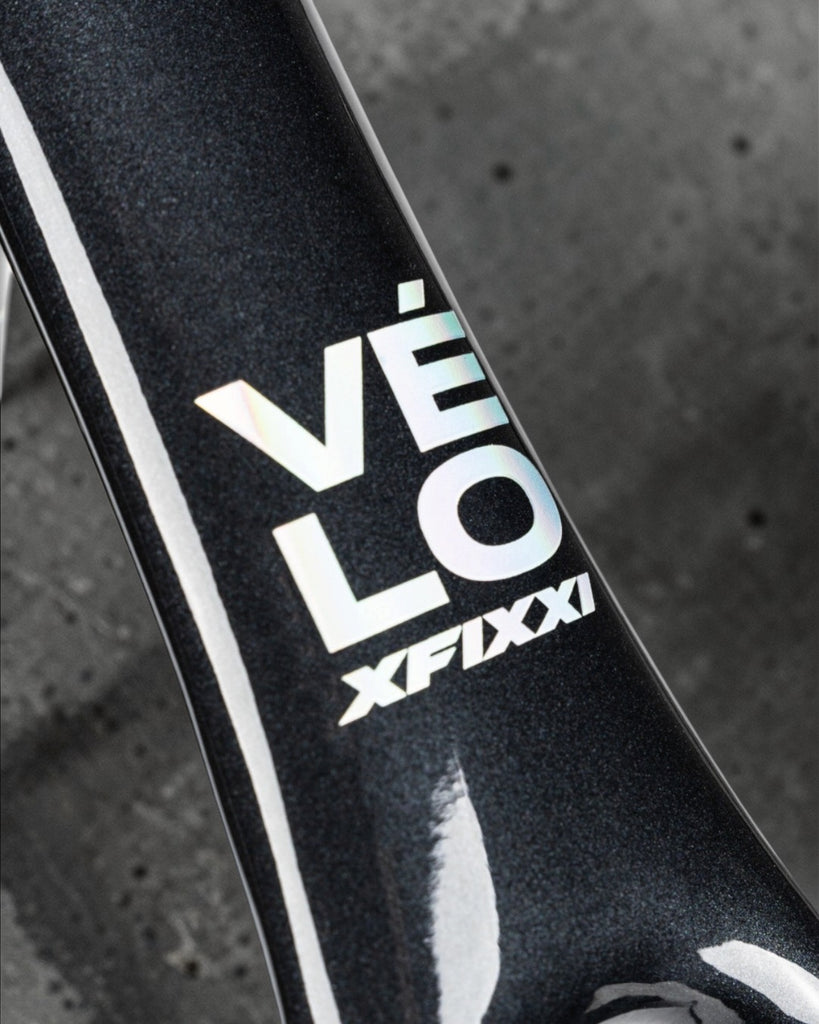

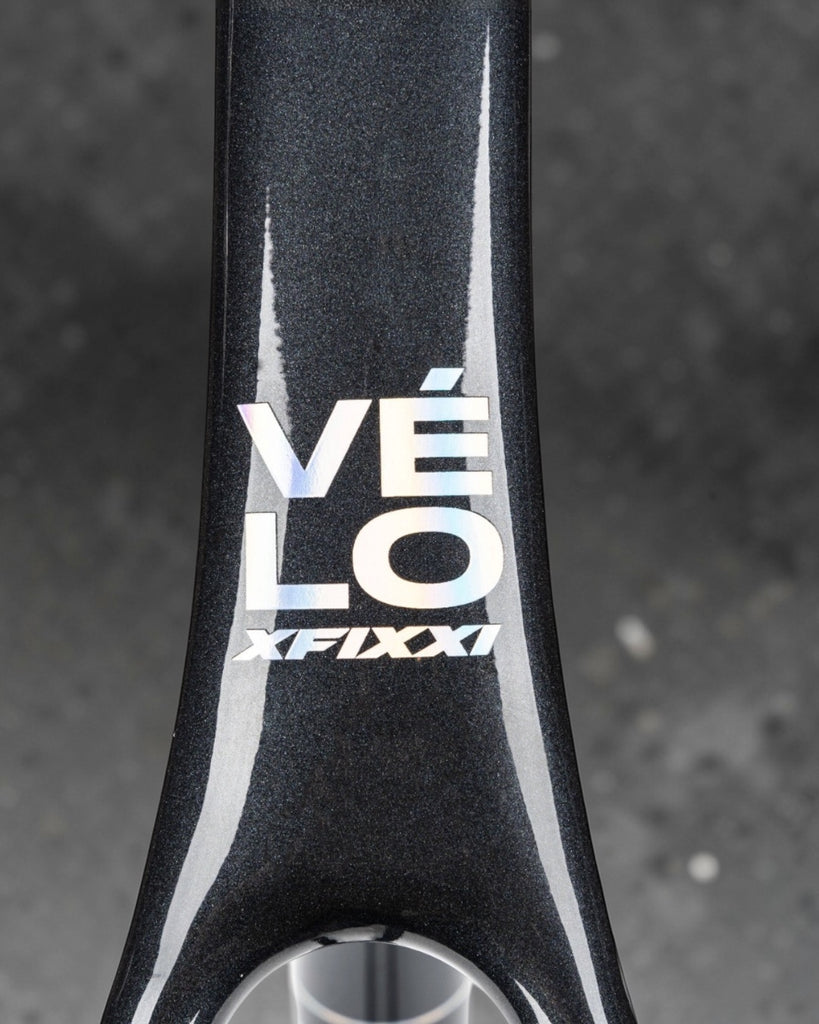

- Finish: Exclusive metallic paint finish with iridescent decals
- Geometry: Pursuit-style, track-focused

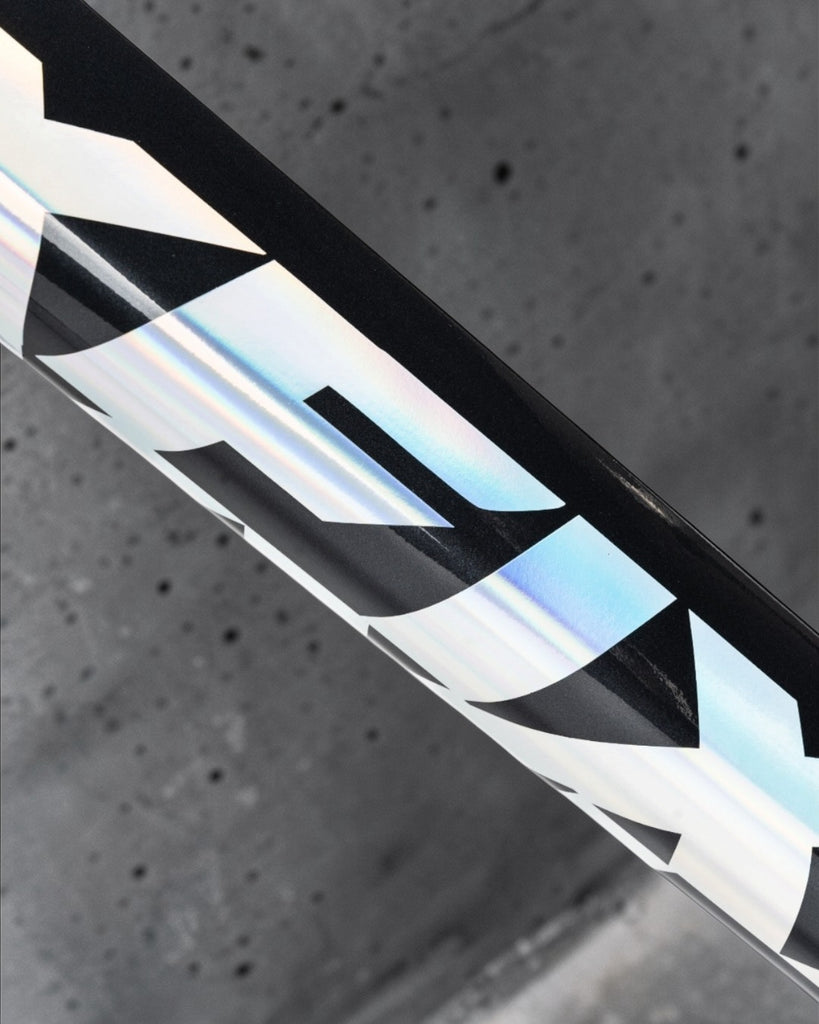

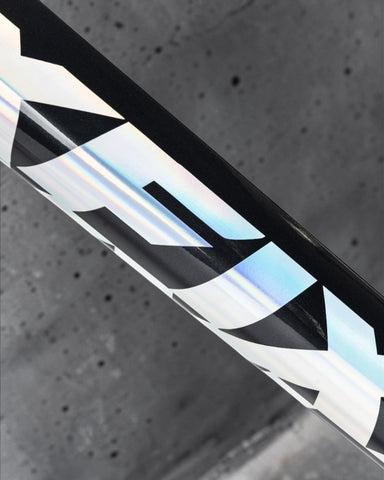

- Down Tube: Oversized oval design for maximum stiffness
- Seatpost Size: 31.6mm (not included)
- Rear Brake Mount: Not equipped (true track specification)

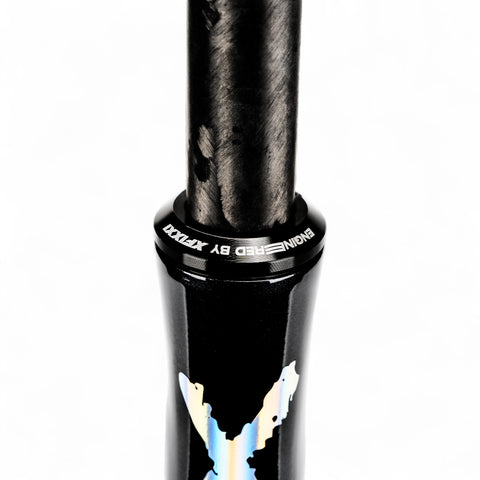

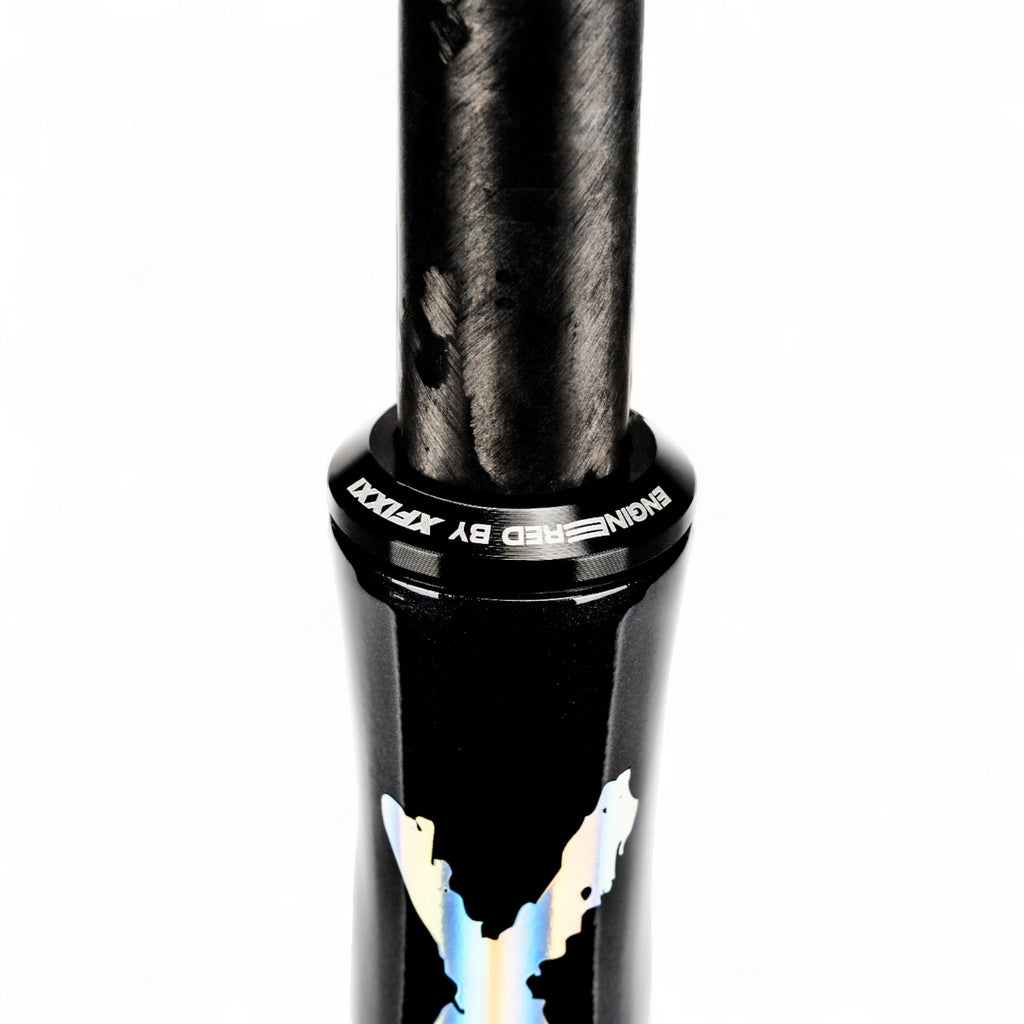

- Included: Frame, fork, integrated headset, alloy seat clamp
Remarks: Fits tires up to 700x28C, depending on the tire brand. Feel free to ask XFIXXI for compatibility details.
Ideal For
- Velodrome track racing
- Competitive fixed gear riders
- Aggressive performance street builds
- Riders seeking maximum stiffness and race geometry
Geometry & Sizing

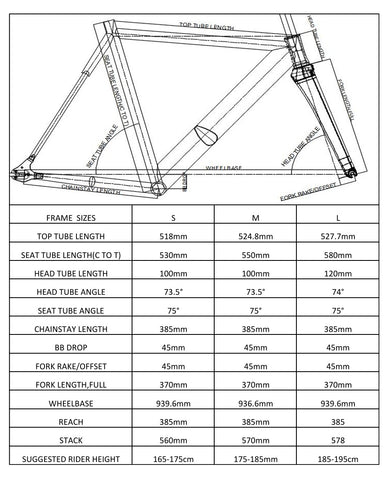

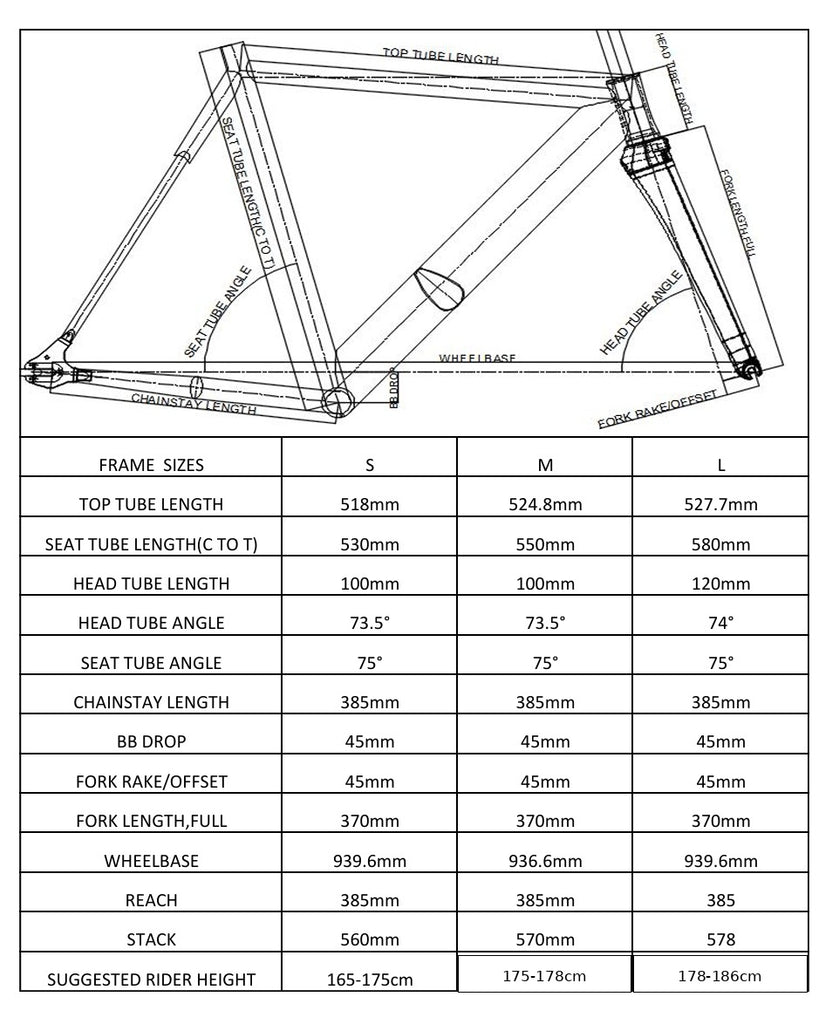

Refer to the geometry diagram in the product images for visual measurements.
| Frame Size | S | M | L |
|---|---|---|---|
| Top Tube Length | 518mm | 524.8mm | 527.7mm |
| Seat Tube Length (C–T) | 530mm | 550mm | 580mm |
| Head Tube Length | 100mm | 100mm | 120mm |
| Head Tube Angle | 73.5° | 73.5° | 74° |
| Seat Tube Angle | 75° | 75° | 75° |
| Chainstay Length | 385mm | 385mm | 385mm |
| BB Drop | 45mm | 45mm | 45mm |
| Fork Rake / Offset | 45mm | 45mm | 45mm |
| Fork Length (Full) | 370mm | 370mm | 370mm |
| Wheelbase | 939.6mm | 936.6mm | 939.6mm |
| Reach | 385mm | 385mm | 385mm |
| Stack | 560mm | 570mm | 578mm |
| Suggested Rider Height | 165–175cm | 175–178cm | 178–186cm |
Track-focused Low Pro geometry with an aggressive riding position. Riders seeking sharper handling may size down for a more responsive feel.
